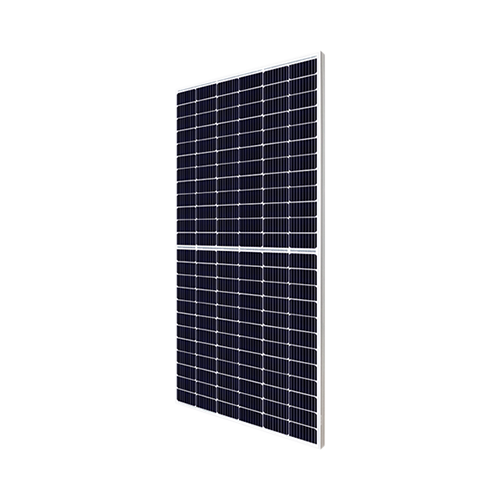

Canadian Solar CS3U-370P Solar Panel
Canadian Solar CS3U-370P is a high-efficiency polycrystalline solar panel part of the KuMax series. This 144-cell half-cell module delivers a nominal power output of 370 Watts. It was highly regarded for commercial and large-scale residential installations but is no longer in active production by Canadian Solar.
Technical Specifications
The standard electrical performance under Standard Test Conditions (STC) features these parameters:
- Nominal Maximum Power (Pmax): 370 W
- Module Efficiency: 18.70%
- Opt. Operating Voltage (Vmp): 40.00 V
- Opt. Operating Current (Imp): 9.26 A
- Open Circuit Voltage (Voc): 47.40 V
- Short Circuit Current (Isc): 9.83 A
- Maximum System Voltage: 1500 V
Physical Dimensions
- Length: 2000 mm
- Width: 992 mm
- Height: 35 mm
- Weight: 26.5 kg
Key Design Features
- Half-Cell Technology: Lower internal current reduces hot spot risks and power loss during shading.
- Weather Resistance: Certified for heavy snow loads up to 5400 Pa and wind loads up to 3600 Pa.
- Temperature Coefficient: At -0.36%/°C, the panel retains stable performance even as cell temperatures rise.
