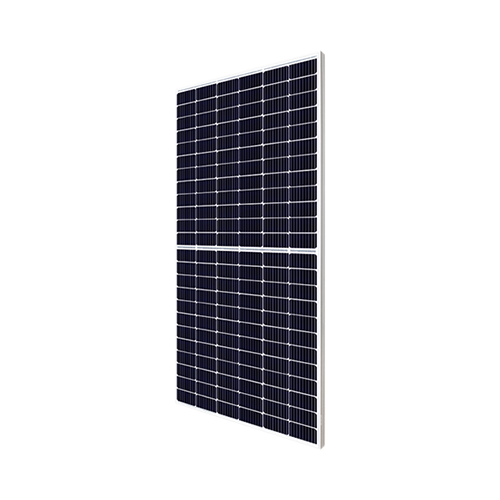

Canadian Solar CS3W-455MS Solar Panel
Canadian Solar CS3W-455MS is a 455W monocrystalline PERC solar module from the HiKu series, designed for residential, commercial, and utility-scale solar installations.
Key Electrical Specifications
- Nominal Maximum Power (Pmax): 455 W
- Optimum Operating Voltage (Vmp): 41.3 V
- Optimum Operating Current (Imp): 11.02 A
- Open Circuit Voltage (Voc): 49.5 V
- Short Circuit Current (Isc): 11.66 A
- Module Efficiency: 20.6%
- Maximum System Voltage: 1500 V
Mechanical Characteristics
- Cell Type: Monocrystalline PERC half-cut cells
- Cell Arrangement: 144 cells
[2 x (12 x 6)] - Dimensions: 2108 x 1048 x 35 mm
- Weight: 24.3 kg
- Front Cover: 3.2 mm tempered glass with anti-reflective coating
- Frame: Silver anodised aluminium alloy
- Junction Box: IP68 rated with 3 bypass diodes
- Connectors: T4 series or MC4-EVO2
Key Benefits
- Better Shading Tolerance: Due to the half-cut cell layout, shading on one half of the panel doesn't completely stop power generation on the other.
- Lower Temperature Coefficient: A low coefficient of
-0.35 % / °Censures better energy output in hot climates. - Mitigated Hotspots: Lower internal operating currents reduce the risks of localized hot spots and micro-cracks.
