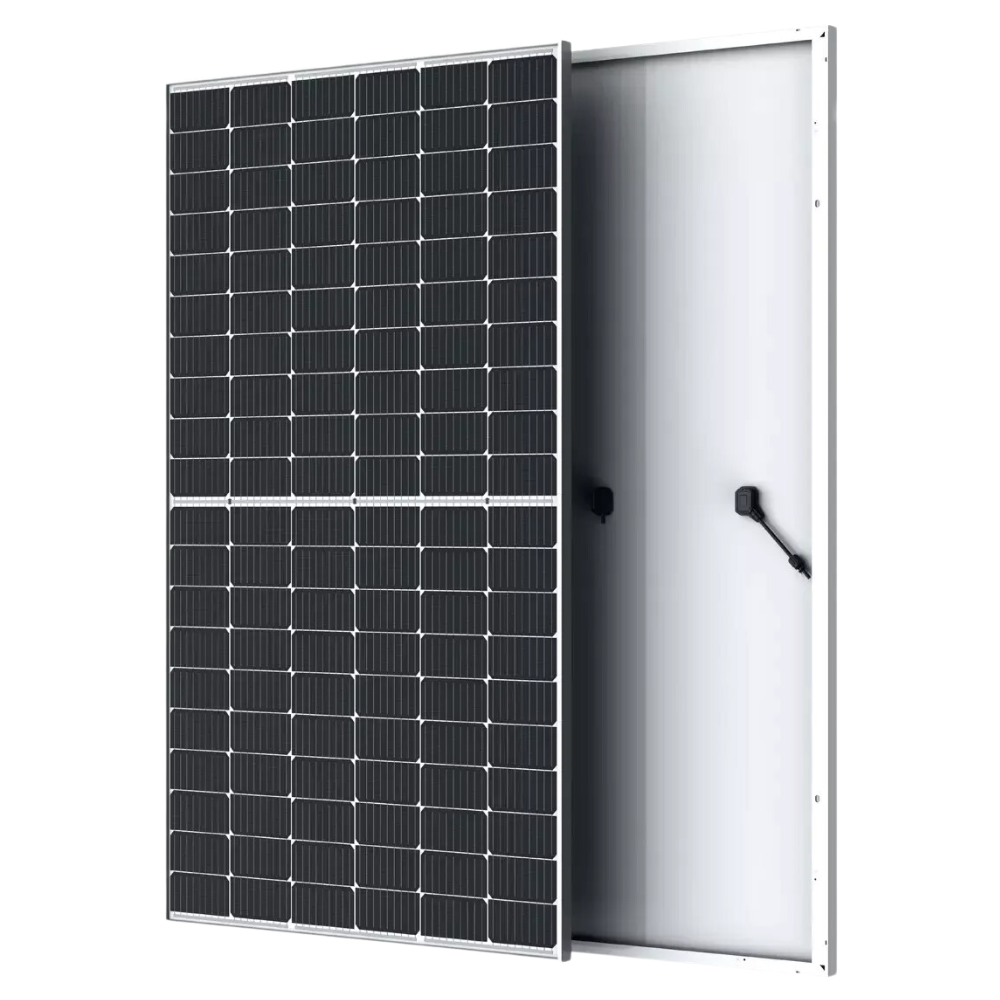

JA Solar JAM60S10-340/MR Solar Panel
The JA Solar JAM60S10-340/MR is a 340-watt monocrystalline PERC solar panel manufactured by JA Solar Technology. It is built using a 120 half-cell configuration combined with multi-busbar (MBB) technology.
Key Technical Specifications
- Maximum Power (Pmax): 340 Watts
- Cell Type: Monocrystalline PERC
- Number of Cells: 120 half-cells (arranged in a 6x20 matrix)
- Module Efficiency: Up to 20.21%
- Dimensions: 1689 mm × 996 mm × 35 mm
- Weight: 18.7 kg (41.22 lbs)
- Frame Color: Silver or customizable Black Frame (BFR)
- Backsheet/Foil Color: White
- Connector Type: MC4 or MC4-compatible
Performance & Temperature Behavior
- Temperature Coefficient of Pmax: -0.35 %/°C
- Maximum System Voltage: 1000V DC
- Mechanical Loading Capacity: Certified to tolerate high wind and heavy snow loads.
Core Technology Advantages
- Half-Cell Configuration: Splitting the standard 60-cell layout into 120 half-cells halves the internal electrical current. This greatly reduces resistive losses and increases overall power output.
- Multi-Busbar (MBB) PERC: Passivated Emitter and Rear Cell (PERC) technology increases light absorption. Multi-busbars shorten the distance current must travel, reducing internal resistance and minimizing microcrack risks.
- Better Shading Tolerance: Because the module is split into two independent halves, shading on the bottom half of the panel won't fully shut down the energy generation of the top half.
- Lower Hot-Spot Risks: The lower cell current leads to a significantly reduced risk of localized hot spots, extending the lifespan of the equipment.
