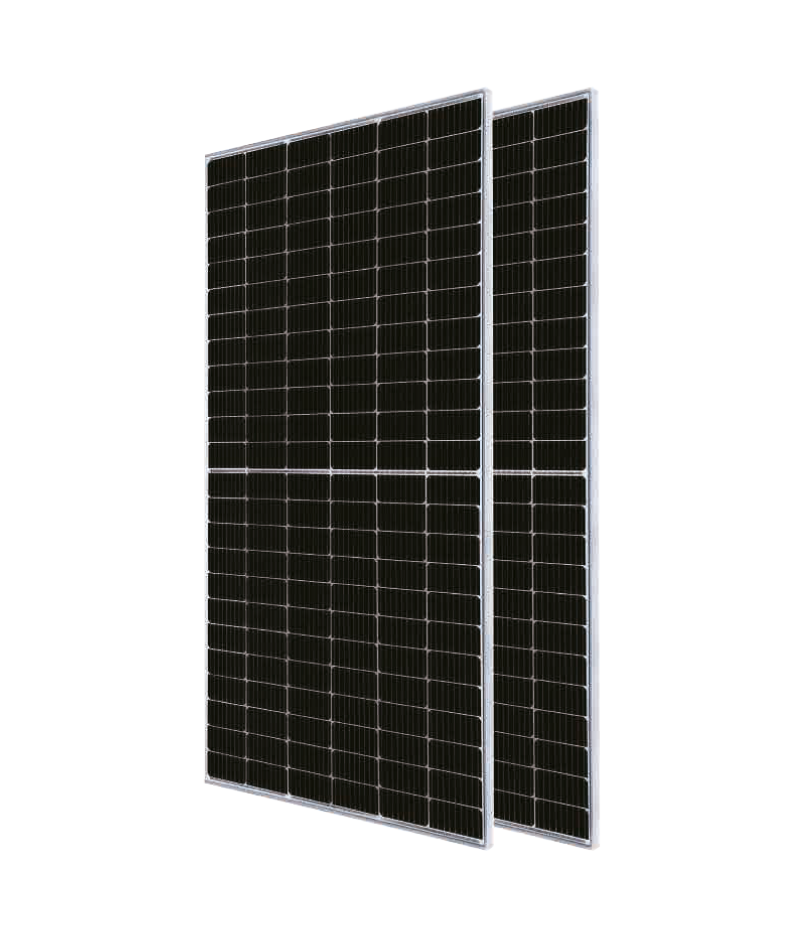

JA Solar JAM72S20-460/MR Solar Panel
The JA Solar JAM72S20-460/MR is a 460W monocrystalline PV module engineered for utility-scale, commercial, and residential solar systems. Manufactured by JA Solar, it features multi-busbar (MBB) PERC technology arranged in a 144 half-cell layout to optimise efficiency and reduce internal resistive losses.
Mechanical Properties
- Dimensions: 2112 mm × 1052 mm × 35 mm
- Weight: 24.5 kg (±3%)
- Cell Type: Monocrystalline Silicon (144 half-cells breakdown into 6×24 configuration)
- Front Glass: 3.2 mm tempered glass with anti-reflective coating
- Frame: Anodised aluminium alloy (available in silver or black variants)
- Junction Box: IP68 rated protection level with integrated bypass diodes
- Connectors: MC4 or QC 4.10 compatible
Key Technological Features
- Half-Cell Design: Splitting the cells into halves lowers the internal electrical current. This configuration limits shading impact and drops structural resistive loss.
- MBB PERC Architecture: Multi-busbar paths shorten the distance electrons travel, decreasing power loss and minimizing hot-spot degradation risks.
- Environmental Tolerance: Certified to handle high mechanical pressure up to 5400 Pa of frontal load (snow) and 2400 Pa of rear load (wind).
- Lower Temperature Coefficient: Safeguards energy production from steep drops during peak summer temperatures.
