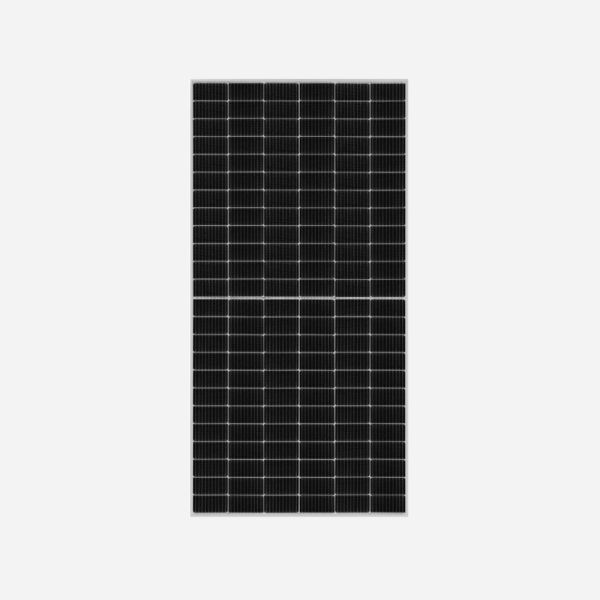

JA Solar JAM78S10-440/MR Solar Panel
JA Solar JAM78S10-440/MR is a 440-watt high-performance monocrystalline solar panel engineered by JA Solar. It is constructed using 156 half-cut Multi-Busbar (MBB) PERC cells. This module is built for efficiency and minimized power degradation across residential, commercial, and utility grid-tie arrays.
Technical Specifications
- Rated Maximum Power: 440 W
- Module Efficiency: 20.3%
- Open Circuit Voltage (\(V_{oc}\)): 53.00 V
- Maximum Power Voltage (\(V_{mp}\)): 44.87 V
- Short Circuit Current (\(I_{sc}\)): 10.44 A
- Maximum Power Current (\(I_{mp}\)): 9.81 A
- Dimensions: 2180 mm × 996 mm × 40 mm
- Weight: 24.6 kg
- Temperature Coefficient (\(P_{max}\)): -0.350%/°C
- Maximum System Voltage: 1500V DC
Key Structural Features
- Half-Cell Architecture: Splitting the cells into two equal halves halves the internal current. This design lowers resistive losses and maintains production even under partial shading conditions.
- Multi-Busbar Technology: Shorter current pathways across individual cells reduce internal resistance and elevate total power density.
- Lower Hot-Spot Risks: Operating at lower inner currents reduces localized cell overheating. This design extension enhances long-term reliability and guards against backsheet damage.
- Enhanced Load Tolerances: Certified to withstand strict mechanical strain, including frontline front-side snow loads up to 5400 Pa and rear wind pressure up to 2400 Pa.
