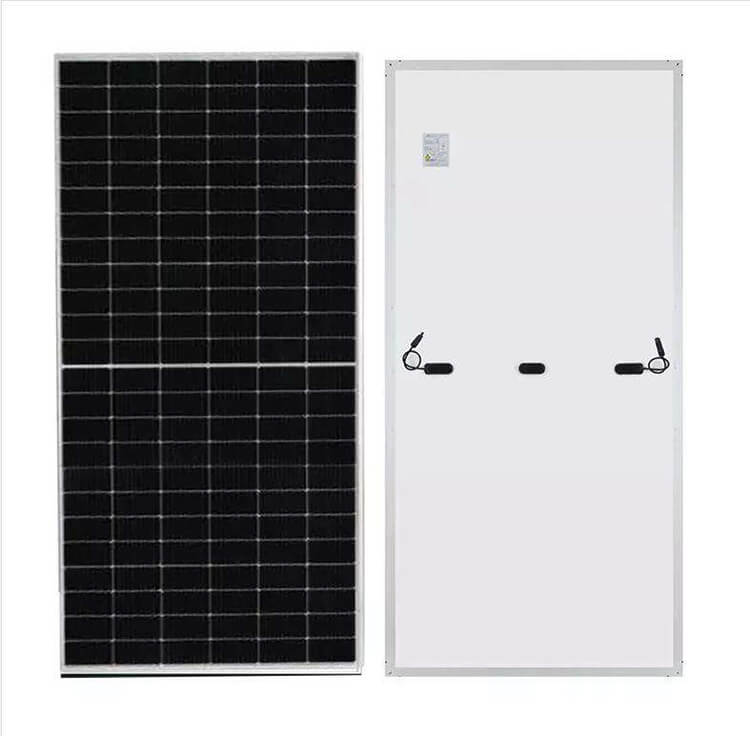

Jinko Solar JKM550M-72HL4-V Solar Panel
JKM550M-72HL4-V is a high-efficiency 550W Monocrystalline P-type PERC solar panel from the Tiger Pro 72HC series manufactured by Jinko Solar. It utilizes half-cell and Multi-Busbar (MBB) technologies to maximize light absorption and reliability.
Electrical Specifications (STC)
- Maximum Power (Pmax): 550 Wp
- Maximum Power Voltage (Vmp): 40.90 V
- Maximum Power Current (Imp): 13.45 A
- Open-circuit Voltage (Voc): 49.62 V
- Short-circuit Current (Isc): 14.03 A
- Module Efficiency: 21.33%
- Maximum System Voltage: 1500V DC
Mechanical Properties
- Cell Type: P-type Mono-crystalline half-cells (144 total cells arranged in 6×24)
- Dimensions: 2274 × 1134 × 35 mm
- Weight: 28.9 kg (63.7 lbs)
- Front Glass: 3.2mm Anti-Reflection coating, high-transmission tempered glass
- Frame: Anodized aluminium alloy
- Junction Box: IP68 rated weather protection
Performance & Durability
- Mechanical Load: Front snow load up to 5400 Pa and rear wind load up to 2400 Pa.
- Degradation: 0.55% annual power decline over a 25-year linear performance warranty period.
- Environmental Resistance: Certified high resistance against harsh salt mist and ammonia.
Model Code Breakdown
- JKM: Jinko Solar Module
- 550: 550W power rating
- M: Monocrystalline cells
- 72: Standard size format matching 72 full cells (split into 144 half-cells)
- H: Half-cut cell design
- L: Large cell size footprint (182mm)
- 4: Generation/series designation
- V: 1500V maximum system voltage compatibility
