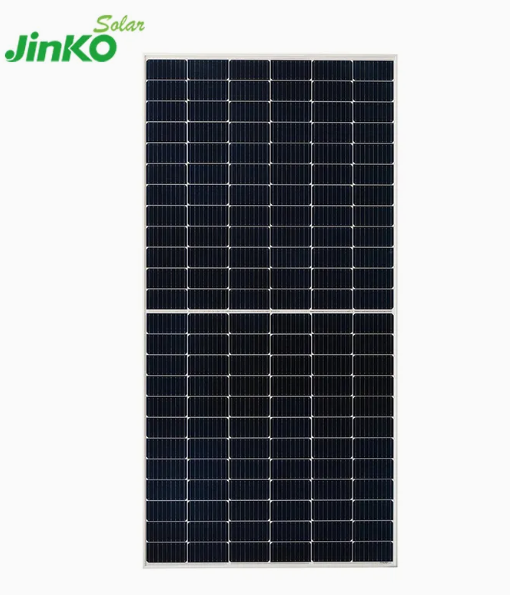

Jinko Solar JKM555M-72HL4-V Solar Panel
JKM555M-72HL4-V is a high-performance 555-watt monocrystalline solar panel manufactured by JinkoSolar. It belongs to the Tiger Pro 72HC product series, utilizing half-cut cell technology to deliver high reliability and optimized efficiency for commercial, utility, and residential solar systems.
Key Specifications
- Power Output: 555 Watts
- Module Efficiency: 21.48%
- Cell Configuration: 144 half-cut monocrystalline PERC cells
- Open-Circuit Voltage (Voc): 49.62 V (some system calculators register it up to 49.72 V)
- Dimensions: 2278 mm × 1134 mm × 35 mm
- Weight: 28.0 kg (61.73 lbs)
- Junction Box: IP68 rated weather protection
- Frame: Silver anodized aluminum alloy
Core Technological Features
- Multi-Busbar (MBB) Technology: Implements optimized electrical pathways that improve light absorption, minimize microcrack power loss, and increase overall current collection reliability.
- PID Resistance: Built with mass-production optimization and strict material control to ensure exceptional anti-PID (Potential Induced Degradation) performance over its lifespan.
- Reduced Hot Spot Loss: The unique electrical layout lowers operating current, which controls hotspot temperatures and improves the temperature coefficient (-0.35% / °C).
- Heavy Mechanical Endurance: Certified to safely endure high external pressures, withstanding front snow loads up to 5400 Pascal and rear wind loads up to 2400 Pascal.
