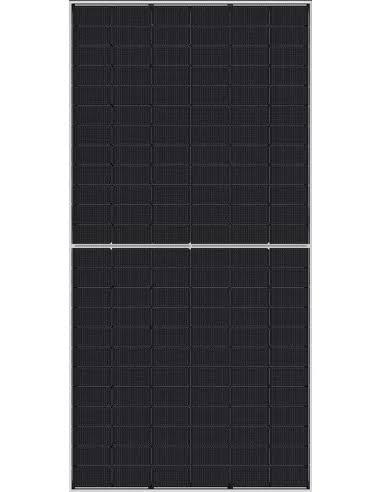

Jinko Solar JKM580N-72HL4-V Solar Panel
Jinko Solar JKM580N-72HL4-V is a high-efficiency, 580W monofacial solar panel from the Jinko Solar Tiger Neo series. Built with advanced N-type TOPCon technology, this 144 half-cell monocrystalline module delivers a maximum efficiency of 22.45% and is highly optimized for commercial, industrial, and large-scale utility systems.
Technical Specifications
- Nominal Power: 580 Wp
- Module Efficiency: 22.45%
- Cell Type: N-type Monocrystalline TOPCon (144 half-cells)
- Dimensions: 2278 × 1134 × 30 mm (or 35 mm depending on frame variant)
- Weight: 27 kg (approx. 59.5 lbs)
- Maximum System Voltage: 1500VDC
- Junction Box Rating: IP68 protection class
- Mechanical Load: 5400 Pa front (snow) / 2400 Pa rear (wind)
Key Advantages
- SMBB Technology: Offers better light trapping and optimized current collection to maximize overall power output and module reliability.
- Low Temperature Coefficient: Minimizes power loss in hot climates with a temperature coefficient of -0.30%/°C, ensuring optimal performance.
- High Environmental Resistance: Certified to withstand harsh environmental conditions, including salt mist and ammonia exposure.
- Extended Warranties: Typically backed by a 12-year product warranty and an industry-leading 30-year linear performance warranty with minimal degradation (~87% remaining by Year 30).
