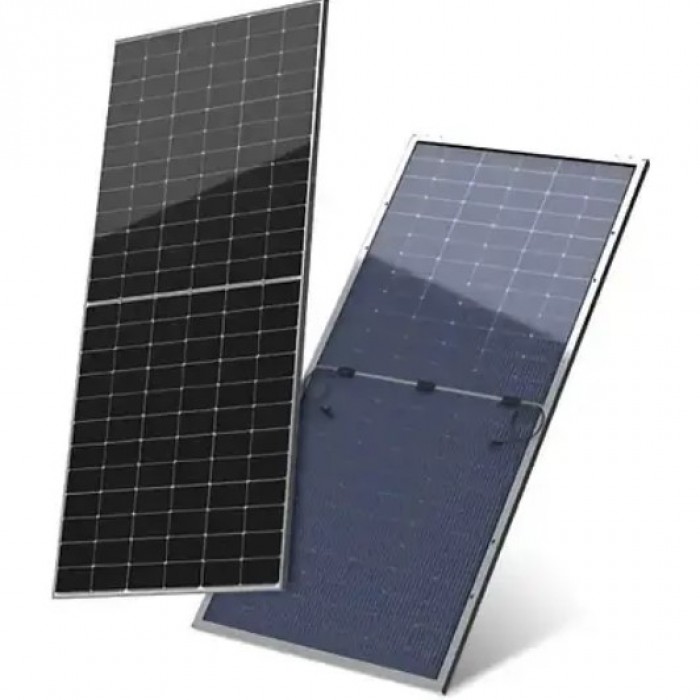

Jinko Solar JKM590N-72HL4-BDV Solar Panel
Jinko Tiger Neo JKM590N-72HL4-BDV is a high-efficiency 590W bifacial dual-glass solar panel utilizing next-generation N-type TOPCon cell technology. It is highly regarded by Jinko Solar for its excellent low-light performance and long-term durability.
Key Technical Specifications
Electrical metrics are measured under Standard Test Conditions (STC):
- Maximum Power (Pmax): 590 Wp
- Module Efficiency: 22.84%
- Open Circuit Voltage (Voc): 52.90 V
- Short Circuit Current (Isc): 14.07 A
- Voltage at Pmax (Vmp): 44.17 V
- Current at Pmax (Imp): 13.36 A
- Temperature Coefficient (Pmax): -0.29%/°C
- Maximum System Voltage: 1500 V DC
- Max Series Fuse Rating: 30 A
Mechanical Properties & Dimensions
- Cell Type: N-type Mono-crystalline, 144 half-cells (72 full cell equivalent)
- Dimensions: 2278 × 1134 × 30 mm
- Weight: 31.0 kg
- Front/Rear Glass: Dual glass construction
- Frame: 30mm Silver anodized aluminum alloy
- Mechanical Load: Front side 5400 Pa (snow), Rear side 2400 Pa (wind)
Core Advantages
- Bifacial Energy Yield: The dual-glass setup harvests reflected light from the ground. This can boost power output by up to 25% depending on the surface albedo.
- N-Type TOPCon Cells: Features Hot 3.0 technology for superior light trapping, current collection, and thermal stability.
- Low Degradation: Offers resistance to Light-Induced Degradation (LID) and LeTID. It guarantees a first-year degradation of ≤1% and an annual linear degradation of ≤0.4% over 30 years.
- Extended Warranties: Typically paired with a 12-year product warranty and a 30-year linear performance warranty.
