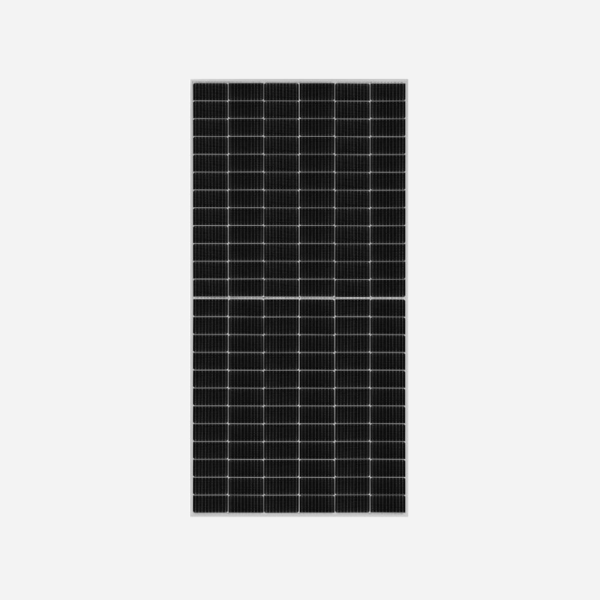

Trina Solar TSM-DE19-550 Solar Panel
Trina Solar Vertex TSM-DE19-550 is a high-efficiency, 550W monocrystalline PERC solar panel engineered for commercial and utility-scale installations.
Key Technical Specifications
Based on official documentation from Trina Solar, the core parameters include:
- Maximum Power (Pmax): 550 W
- Module Efficiency: Up to 21.2%
- Maximum Power Voltage (Vmp): 31.6 V
- Maximum Power Current (Imp): 17.4 A
- Dimensions: 2,384 mm × 1,096 mm × 35 mm
- Weight: 28.6 kg
Key Features
- Advanced Cell Technology: Built on a 210mm large-size silicon wafer using multi-busbar technology to enhance light absorption.
- High-Density Encapsulation: Maximizes surface area usage to reduce the Levelized Cost of Energy (LCOE) and Balance of System (BOS) costs.
- Robust Build: Features an IP68-rated junction box and is certified to withstand severe environmental loads up to 5,400 Pa positive (snow) and 2,400 Pa negative (wind).
