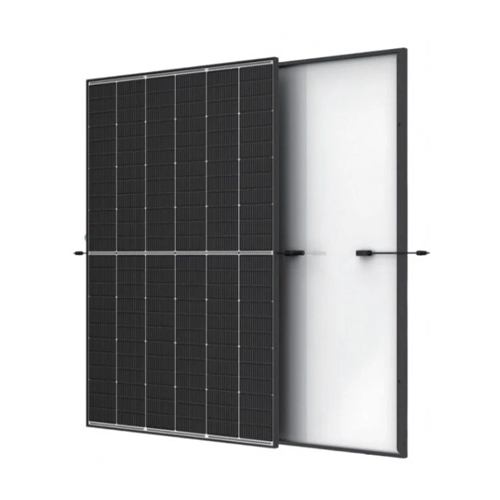

Trina Solar TSM-NEG9R.28-455 Solar Panel
Trina Solar TSM-NEG9R.28-455 is a high-performance 455Wp monocrystalline solar panel from the Vertex S+ series. It uses advanced N-type i-TOPCon cell technology and a robust dual-glass (glass-glass) architecture, making it highly efficient and durable for residential and commercial rooftop installations.
Technical Specifications
The standard operating specifications from the official Trina Solar Technical Datasheet are detailed below:
- Peak Power (Pmax): 455 Wp
- Module Efficiency: 22.8 %
- Open Circuit Voltage (Voc): 53.4 V
- Maximum Power Voltage (Vmpp): 45.0 V
- Short Circuit Current (Isc): 10.77 A
- Maximum Power Current (Impp): 10.11 A
- Cell Type: N-type Monocrystalline (TOPCon), Triple-Cut
- Number of Cells: 144 cells
- Dimensions: 1762 mm × 1134 mm × 30 mm
- Weight: 21.0 – 21.8 kg
- Frame: Anodized Aluminium (Black Frame)
- Backsheet: White glass (Non-transparent)
- Connectors & Cable: Stäubli MC4 EVO2 connectors with 1100 mm cables
Key Features and Performance
- N-type i-TOPCon Technology: Delivers lower initial degradation and a superior temperature coefficient of -0.29%/°C, allowing the panel to produce more electricity in hot climates.
- Dual-Glass Design: Features 1.6 mm of glass on both front and back. This design protects against environmental stressors, lowering the risk of micro-cracks, PID (Potential Induced Degradation), and moisture corrosion.
- High Mechanical Load Resistance: Built to handle severe weather, certified to withstand a front snow load of up to 5,400 Pa and a rear wind load of 4,000 Pa.
- Industry-Leading Warranties: Includes a 25-year product warranty and a 30-year linear performance warranty. Degradation is limited to 1% in the first year and a maximum of 0.4% annually thereafter.
