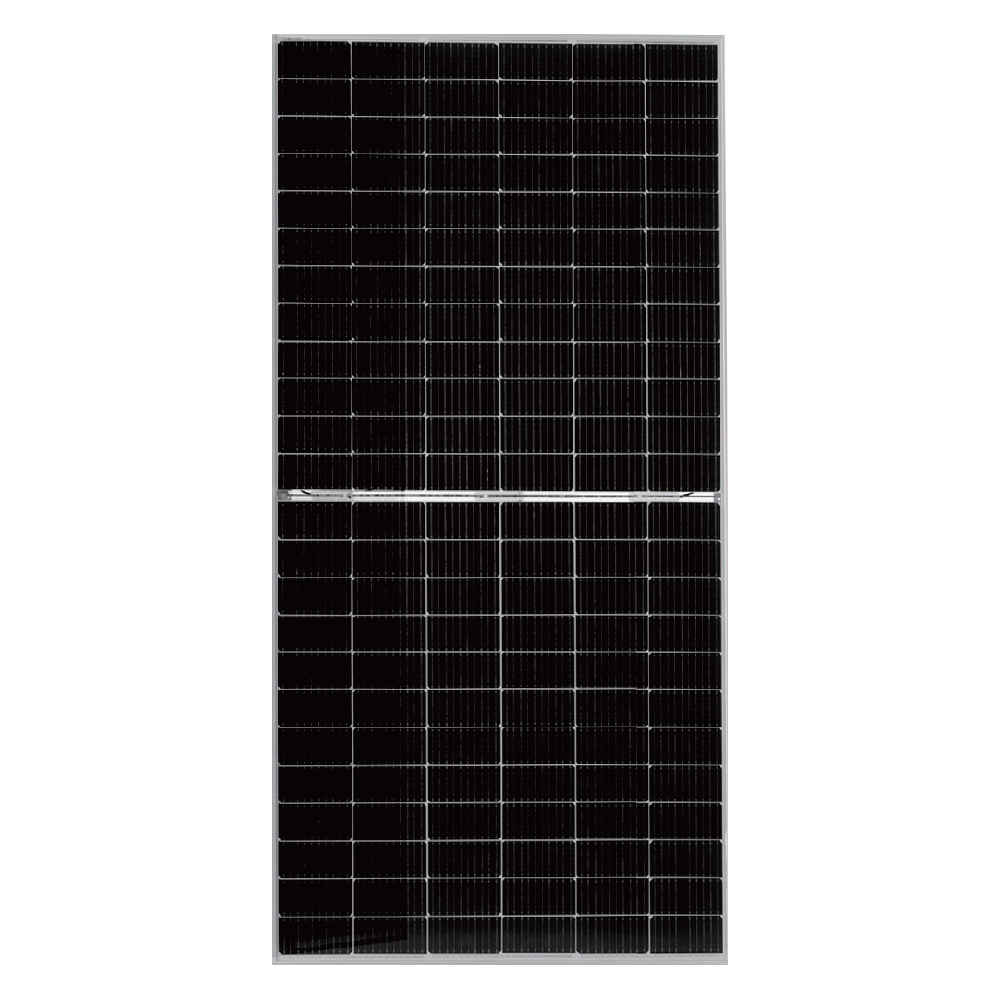

Jinko Solar JKM545M-72HL4-BDVP Solar Panel
JKM545M-72HL4-BDVP is a high-performance 545W Bifacial Dual-Glass Solar Panel manufactured by Jinko Solar, belonging to their renowned Tiger Pro series.
Key Specifications
According to official documentation and technical sheets listed on ENF Solar and Panpower, the module features the following core parameters:
- Power Output: 545 Wp (STC rating)
- Module Efficiency: 21.18%
- Cell Type: P-type Monocrystalline, PERC Half-Cell (144 cells total)
- Dimensions: 2278 mm × 1134 mm × 30 mm
- Weight: 32 kg
- Glass Thickness: Dual 2.0 mm glass layers
- Temperature Coefficient (Pmax): -0.35% / °C
Core Technologies & Advantages
- Bifacial Energy Yield: The glass-on-glass layout absorbs light from both sides. Depending on the albedo (reflectivity) of the ground surface (e.g., gravel, concrete, or light roofs), it can boost total energy generation by an additional 5% to 25%.
- Multi-Busbar (MBB) Design: Smaller, tightly packed busbars decrease internal resistance. This provides better light trapping and improved current collection for reliable overall performance.
- Exceptional Durability: The dual-glass setup minimizes mechanical stress. It is certified to withstand high severe weather loads, resisting up to 5400 Pa of snow load and 2400 Pa of wind pressure.
- Long-Term Performance: Jinko backs this module with a 12-year product warranty and a 30-year linear power warranty, guaranteeing a low annual power degradation of just 0.45%.
