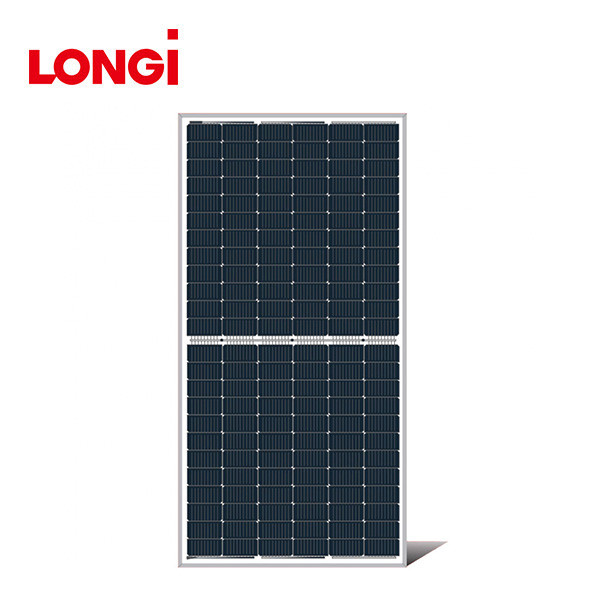

LONGI LR4-72HPH-450M Solar Panel
LONGi LR4-72HPH-450M is a high-efficiency, 450W monocrystalline solar panel belonging to the LONGi Solar Hi-MO 4m series. It utilizes 144 half-cut Mono PERC cells integrated with a multi-busbar (9BB) layout to boost power collection and lower structural resistive losses.
Key Technical Specifications
The electrical metrics below are measured under Standard Test Conditions (STC: AM1.5, 1000W/m², 25°C):
- Maximum Power (Pmax): 450 Watts
- Module Efficiency: 20.7%
- Open Circuit Voltage (Voc): ~49.3V – 49.7V
- Short Circuit Current (Isc): 11.60 Amps
- Voltage at Pmax (Vmp): 41.5 Volts
- Current at Pmax (Imp): 10.85 Amps
- Power Output Tolerance: 0 to +5 Watts
- Maximum System Voltage: 1500V DC
Physical & Mechanical Properties
- Dimensions: 2094 mm × 1038 mm × 35 mm
- Weight: 24.3 kg (51.82 lbs)
- Front Glass: 3.2 mm coated tempered glass
- Frame: Anodized aluminum alloy (silver)
- Junction Box: IP68 rated with 3 bypass diodes
- Connector/Cable: 4mm² output cables (+400mm / -200mm standard)
Core Advantages
- Low Light Performance: Retains an average relative efficiency of 97.5% under lower irradiance environments (200W/m²).
- Temperature Coefficient: Features a low thermal coefficient of -0.35%/°C, resulting in superior energy output in hotter climates.
- Degradation Resistance: Gallium-doped technology curbs Light-Induced Degradation (LID). Power output drops by ≤2% in year one, followed by a linear annual loss of ≤0.55% up to year 25.
- Mechanical Durability: Handles static heavy snow loads up to 5400 Pa on the front and wind forces up to 2400 Pa on the rear.
