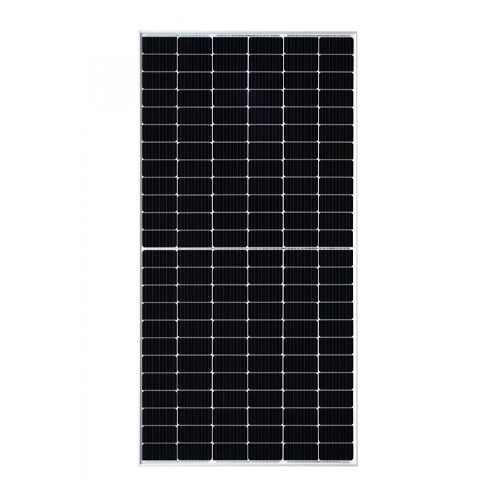

RISEN RSM40-8-415-M Solar Panel
Risen RSM40-8-415M (part of the Titan S series) is a high-performance 415W monocrystalline PERC solar panel manufactured by Risen Energy, a global Tier 1 solar module provider. It features 120 half-cut cells designed to maximize efficiency and minimize performance losses due to shading or extreme environmental temperatures.
Core Electrical Specifications (STC)
According to the official Risen Energy Technical Datasheet, the panel operates under Standard Test Conditions (STC) with these electrical limits:
-
- Maximum Power (Pmax): 415 Wp
- Module Efficiency: 21.6%
- Open Circuit Voltage (Voc): 42.20 V
- Short Circuit Current (Isc): 12.53 A
- Maximum Power Voltage (Vmpp): 35.14 V
- Maximum Power Current (Impp): 11.82 A
- Maximum System Voltage: 1500 VDC
Mechanical & Structural Data
-
- Dimensions: 1754 mm × 1096 mm × 30 mm (Note: frame configurations can vary slightly by batch, up to 1770 mm × 1120 mm × 36 mm).
- Weight: 21.0 kg.
- Connectors: Risen Twinsel PV-SY02, IP68 rated.
- Mechanical Load Resistance: Certified to withstand heavy snow loads up to 5400 Pa and wind pressure up to 2400 Pa.
Key Benefits
- Anti-PID Technology: Formulated to mitigate Potential Induced Degradation, maintaining long-term energy yields.
- Better Low-Light Performance: Delivers superior power output under cloudy or low-irradiance conditions.
- Industry-Standard Warranty: Typically comes with a 12-to-15-year product material warranty alongside a 25-year linear power performance warranty guaranteeing limited annual degradation.
