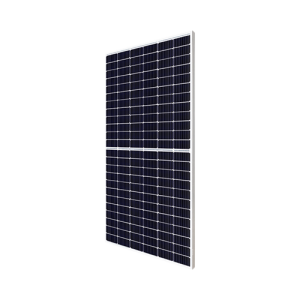

Trina Solar TSM-DE18-550 Solar Panel
Trina Solar TSM-DE18-550 (part of the Tallmax M / Vertex series) is a high-efficiency, 550W monocrystalline solar panel engineered primarily for commercial, industrial, and large-scale utility projects. It utilizes multi-busbar (MBR) PERC half-cell technology to maximize light absorption and improve power generation even in shaded conditions.
Core Technical Specifications
The electrical and physical metrics under Standard Test Conditions (STC) include:
- Maximum Power (Pmax): 550 W
- Open Circuit Voltage (Voc): 49.8 V
- Maximum Power Voltage (Vmpp): 41.6 V
- Maximum Power Current (Impp): 13.21 A
- Module Efficiency: Up to 21.3% – 21.7%
- Dimensions: 2278 mm × 1134 mm × 30 mm
- Weight: 27.5 kg
- Cell Count: 144 split half-cells
Key Features
- High Performance: The 210mm large-size silicon wafers combined with half-cell cutting lower internal resistance loss and optimize power output.
- Extreme Durability: Features an anodized aluminum alloy frame and an IP68-rated junction box, certified to withstand 5400 Pa front snow load and 2400 Pa wind load.
- Inverter Compatibility: Its high-current design pairs efficiently with mainstream commercial string inverters from brands like Huawei and Sungrow.
- Reliability Warranty: Comes with a standard 12-year product materials warranty and a 25-year linear power performance guarantee.
